grub-live - boot an existing Host OS or VM into Live Mode

From Kicksecure
Jump to navigation Jump to search

The grub-live package offers an additional "LIVE mode" boot menu entry for the GNU GRUB boot loaderarchive.org.

This package is compatible with many Linux distributions, including Debian and Ubuntu. In Kicksecure and Whonix it is installed by default. Grub-live can be applied for a host operating system (OS) as well as for a guest OS on a virtual machine.

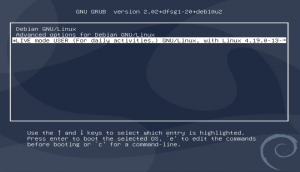

Debian Live Mode Boot (Live Mode)
Kicksecure Live Mode Boot (Live Mode)
Whonix Live Mode Boot (Live Mode)

Compatibility[edit]

grub-live is compatible and tested with Debian, Kicksecure and Whonix. In Kicksecure and Whonix it is installed by default. It should also without any problems run on Ubuntu and other Linux distributions which implement Debian live boot. But due to little user adoption and testing at this point in time grub-live for those distributions is still labelled untested.

Installation / Getting started[edit]

The grub-live package is hosted under the grub-live GitHub repositoryarchive.org. There you will also find the installation guide.

After the installation you can instantly use the Live Mode in your operating system. Simply boot/reboot your system and choose the new "LIVE mode" option in the boot menu. For Kicksecure specifically read: Detaillled documentation for using the live mode for Kicksecure.

Set grub-live as Default in GRUB boot menu[edit]

Optional.

If you have installed grub-live and you want the "LIVE mode" option to be the default selected option in your grub menu please follow the instructions below. Be aware however that due to little user adoption and testing yet this options is still labelled untested.

1. Do a grub-live package installation check

By default the grub-live package is installed in Kicksecure. If you boot your system and a boot menu entry "LIVE mode" is already avaialble, then grub-live is already installed.

Alternatively you can make sure the package grub-live packagearchive.org is installed. The following command can be used to check on the command line if the package is already installed by default.

dpkg -l | grep grub-live

2. Set LIVE mode as default boot menu entry

There are 2 ways to accomplish this. Choose one ot these options

Option (A) - symlink method

  • Advantage: This is easier because updates to grub-live will be automatically applied.
  • Disadvantage: There will be a duplicate live boot menu entry.
  • Copy and execute the following command

sudo ln -s /etc/grub.d/11_linux_live /etc/grub.d/09_linux_live

Option (B) - moving method

  • Advantage: No duplicate live boot menu entry.
  • Disadvantage: Updates to grub-live will NOT be automatically applied.
  • Copy and execute the following command

sudo mv /etc/grub.d/11_linux_live /etc/grub.d/09_linux_live

3. Re-generate grub boot menu

The grub boot menu needs to be regenerated for the changes to be applied. Copy and execute the following command

sudo update-grub

4. DONE

The process of changing from "live mode opt-in through boot grub menu" to "live boot by default" has been completed.

5. Updates

If in step 2 "option (B)" was chosen then this process might need to be repeated from time to time if there have been updates to GRUB or to your system. The need to repeat this process from step 1 to step 4 will be indicated as soon as the "LIVE mode" entry will not be the default entry in the GRUB boot menu anymore.

If in step 3 "option (A)" was chosen then this step is not needed. Updates will be applied automatically.

Get GRUB to remember your last choice (e. g. Live mode)[edit]

Optional.

If you don't want to set Live Mode as your permanent default boot option but still want the comfort of having GRUB remember your last choice, e. g. "Live mode", then follow these instructions. [1]

1. Open file /etc/default/grub.d/50_user.conf in an editor with root rights.

Kicksecure

This box uses sudoedit for better security.

Kicksecure for Qubes

NOTE: When using Kicksecure-Qubes, this needs to be done inside the Template.

Others and Alternatives

  • This is just an example. Other tools could achieve the same goal.
  • If this example does not work for you or if you are not using Kicksecure, please refer to this link.

sudoedit /etc/default/grub.d/50_user.conf

2. Now add those two lines to this file: GRUB_DEFAULT=saved GRUB_SAVEDEFAULT=true

3. Finally execute this command: sudo update-grub

4. Done.

Your boot menu now remembers your last choice.

Alternative to grub-live[edit]

As an alternative to grub-live it is also possible to automatically detect if the disk is set to read-only and enable live mode automatically using the ro-mode-init package. Read VM Live Mode - Alternative ro-mode-init Configuration for further instructions.

ro-mode-init is currently less tested than grub-live.

Comparison between grub-live and Tails[edit]

Tails is its own operating system whereas grub-live is a package enabling Live Mode on different Linux distributions. The following table will show advantages and disadvantages of grub-live in regard to Tails. It shall be noted however that whereas Tails is optimized in regard to Live mode grub-live is vastly more compatible with other systems.

Table: Comparison of grub-live and Tails

Aspect grub-live on the host [2] /
grub-default-live on the host
Tails DVD only Tails USB / DVD, with persistent USB Tails read-only medium and other devices with write capability unplugged [3] [4]
Common [5] mode of operation Yes Yes Yes No [6]
Amnesic / protects against disk modifications [7] Yes Yes Yes Yes
Protects against malware persistence on hard drive after malware compromise No [8] No [8] No [8] Yes [8]
Protects against firmware trojans after malware compromise No [8] No [8] No [8] No [8]
Avoid writing to arbitrary (non-boot) host disks ? Yes [9] Yes [9] Yes [9]
Disables removable drives auto-mounting No Yes [10] [11] Yes [10] Yes [10]
Disables swap ? Yes Yes Yes
Disabled virtual machine shared folders No [12] ? ? ?
Wipe RAM on shutdown No, but see ram-wipe. [13] Yes, but with limitations. [14] Yes, but with limitations. [14] Yes, but with limitations. [14]
Wipe video RAM on shutdown No [15] No [16] No [16] No [16]
Emergency shutdown on USB removal No Yes Yes Yes
Live Mode Usability [17] Average [18] Good [19] Good [19] Good [19]
Live Mode Indicator For Xfce only. [20] Unneeded Unneeded Unneeded
Unified Amnesic + Anonymous User Experience No [21] Yes Yes Yes
Easy standard ("everyday") upgrades [22] Yes ? ? ?
Release upgrades [23] possible anytime [22] Yes No [24] No [24] No [24]
Live boot by default
  • grub-live: No [25]
  • grub-default-live: Yes
Yes Yes Yes
Persistent boot by default
  • grub-live: Yes [25]
  • grub-default-live: No
No No No
Full disk encryption compatibility Yes No No No
Encrypted persistence supported Yes Yes [26] Yes [26] Yes [26]

Security Considerations[edit]

How secure and reliable is any live mode?

Computers typically default to data persistence rather than amnesia. Coupled with widespread computer security vulnerabilities (see About Computer (In)Security), implementing a secure system is challenging.

grub-live is relatively straightforward. It primarily involves installing necessary dependencies and setting kernel parameters (details in Implementation). However, the software it is based on, such as dracut (or initramfs-tools/Debian's live-tools), mount, overlayfs are complex. Sparse developer documentation in this area makes this difficult. There is also an increased risk of failures post Release Upgrade or after installing new major versions of Kicksecure or Debian, due to the generic nature of the solution.

There is a potential risk that malware could remount a read-only disk as read-write. While no confirmed cases exist, theoretically, even legitimate software could inadvertently perform such actions. To mitigate this risk, it's advisable to use grub-live in conjunction with a physical read-only mode for hard drives, where feasible.

Using grub-live on the host operating system, combined with virtual machines (VMs), is a safer configuration. In this setup, any disk remounting as read-write within a VM would be negated upon rebooting the host. VMs, in this context, are unaware of the host's live mode status and cannot directly alter it.

Would using an ISO image be safer? Generally, yes.l because ISO commonly aren't modified. It seems unlikely that an ISO would be inadvertently remounted as read-write, unless targeted specifically by malware.

Tools like growisofs can append data to an ISO, it's more complex than a simple remount command. Even without growisofs, Malware could potentially repackarchive.org and rewrite an ISO, but it is an even more complicated process.

What about read-only media, like a DVD-R (not DVD-RW)? This is indeed a safer option, but less practical. It requires burning the DVD, then using it in a read-only DVD reader, which is not a common practice.

Combining physical write protection switches with grub-live would further enhance security. However, even this is not foolproof due to potential hardware vulnerabilities or defects. Thus, it should be considered an additional layer of defense rather than a complete solution.

Reflecting on these aspects, we can categorize security configurations from least to most secure, as follows:

Notes:

  • This list, created in December 2023, might have minor inaccuracies but generally represents the correct security hierarchy.
  • ISO HDD: It is possible to boot an ISO located on the hard drive. This is unspecific to Kicksecure and out of scope for this documentation.
  1. VM live mode HDD boot without read-only VM HDD ("least secure")
  2. VM live mode HDD boot with read-only VM hard drive
  3. VM live mode ISO boot without VM HDDs connected
  4. host live mode HDD without read-only HDD
  5. host live mode HDD without read-only HDD + using VMs
  6. host live mode HDD with read-only HDD
  7. host live mode HDD with read-only HDD + using VMs
  8. host live mode ISO HDD with read-only HDD
  9. host live mode ISO HDD with read-only HDD + using VMs
  10. same as above but with Full Disk Encryption as an additional safety layer
  11. same as above but hardware write protection switches enabled
  12. host live mode ISO DVD-RW with
  13. host live mode ISO DVD-RW with + using VMs
  14. host live mode ISO DVD-R with
  15. host live mode ISO DVD-R with + using VMs
  16. same as above but with all other storage devices disconnected ("most secure")

Additional steps users can take to improve the security of live mode:

See also Whonix technical design documentation on forensics The Web Archive Onion Version .

In summary, while striving for maximum security, absolute guarantees are unattainable. Users seeking higher data amnesia assurances should consider becoming developers or auditors, or sponsoring focused development and review in the realm of anti-forensics, including the development of comprehensive automated testing frameworks.

Remount Disk as Read-Write after booting into Live Mode[edit]

This is chapter is more of developer documentation, proof of concept, for curiously than something that users should do.

1. Create a mount folder /mnt/disk.

sudo mkdir /mnt/disk

2. Mount.

Note: /dev/sda3 applies to VirtualBox VMs. It needs to be replaced with the actual hard drive device name.

sudo mount /dev/sda3 /mnt/disk

3. Remount a read-write.

sudo mount -o remount,rw /dev/sda3 /mnt/disk

4. Do persistent modifications.

For example, create a file /home/test-file.

touch /mnt/disk/home/test-file

It is unclear if the disk could even be remounted to / but that is left as an sysadmin exercise to the reader.

5. When done, unmount.

sudo umount /mnt/disk

6. Remove the mount point.

Optional.

sudo rmdir /mnt/disk

7. Done.

The process has been completed.

Questions and answers:

  • Is this a security issue? Yes.
  • Is this issue specific to, caused by grub-live or Kicksecure? No, unspecific to Kicksecure.
  • Is this issue reproducible on other live systems, i.e. without grub-live, Kicksecure being involved? Yes.
  • Are also similar live systems affected? Yes, see Security Considerations.
  • What users can do to improve their security? See same link as above.

Troubleshooting[edit]

Here are some problems you might encounter and their possible solutions.

Missing grub-live boot menu entry[edit]

Please check your local file /etc/grub.d/11_linux_live looks exactly the same as /etc/grub.d/11_linux_live on GitHubarchive.org to verify you have the latest version of the grub-live package. Note, that the stable version might look slightly different than the developers or testers version on github.

Please run the following commands for debugging / information gathering and post them when creating any support requests.

dpkg-query -W -f='${db:Status-Status}' initramfs-tools

dpkg-query -W -f='${db:Status-Status}' dracut

Live Check Systray Issues[edit]

The live mode is indicated by a Live Check Systray icon. I can happen that this icon has an issues. If so here's what you can do.

First of all this is NOT an indication of compromise by malware. The real issue is as simple as: The Live Check Systray is broken.

Known issues:

If not an already known issue, please follow these steps:

1. Is livecheck.sh showing an error?

If livecheckarchive.org is showing an error it might be the following issue. Live check runs command sudo --non-interactive /bin/lsblk --noheadings --raw --output RO as the current unprivileged user. You can test this for yourself with the following command. If this is working then this is NOT the issue

sudo --non-interactive /bin/lsblk --noheadings --raw --output RO

If this is not working the problem might be that this will only work by default for the user userarchive.org, no other user. For example it will not work by default for the Linux user account user2 or any other than user.

If the problem is that a user other than user is the logged in subject then

  • option (A) the current user - for example user2 - needs an exception in /etc/sudoers.d. For comparison see file /etc/sudoers.d/desktop-config-distarchive.org.
  • option (B) the current user - for example user2 - needs to be or become a member of any of the following Linux user groups:

users staff adm sudo root wheel console console-unrestricted

2. Try lsblk

If the above method does not work try also this:

sudo /bin/lsblk

3. If nothing works, report the bug

If you are still having issues you can report a bug with the output from above two lsblk commands included from above.

Technical Details of livecheck.sh[edit]

This chapter is for advanced users only.

Most users can skip this chapter. See livecheck.sharchive.org for further script details.

  • The meaning of 0 in lsblk output is read-write.
  • The meaning of 1 in lsblk output is read-only.

If anything in coloumn RO is set to 0, then it is not blessed read-only hard drive mode.


Example lsblk without any snapd installed, Kicksecure, live mode, and read-only hard drive mode enabled.

sudo lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda      8:0    0  100G  1 disk
└─sda1   8:1    0  100G  1 part /lib/live/mount/medium

Example lsblk without any snapd installed, Kicksecure, live mode, and read-only hard drive mode disabled.

sudo lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sda      8:0    0  100G  0 disk
└─sda1   8:1    0  100G  0 part /lib/live/mount/medium

Example lsblk with snapd and WickrMe installed, Kicksecure, persistent mode, and read-only hard drive mode disabled.

sudo lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
loop0    7:0    0 62.1M  1 loop /snap/gtk-common-themes/1506
loop1    7:1    0  446M  1 loop /snap/wickrme/352
loop2    7:2    0   55M  1 loop /snap/core18/1754
sda      8:0    0  100G  0 disk
└─sda1   8:1    0  100G  0 part /lib/live/mount/medium
sr0     11:0    1 1024M  0 rom

Developer Information[edit]

Users can skip this chapter and below.

Implementation[edit]

This is based on dracut module 90overlay-root which gets enabled when kernel parameter rootovl is set. 90overlay-root is only available in the Debian fork of dracut.

Development[edit]

Should port to 90overlayfsarchive.org

rd.live.overlay.overlayfs=1 rd.live.overlay.readonly=1

While Debian did not https://salsa.debian.org/debian/dracut/-/merge_requests/20archive.org the module will be updated in the next major version of Debian as per usual as Debian receives newer dracut versions from dracut upstream.

Porting grub-live to other Linux Distributions[edit]

Might be rather simple in comparison to other packages.

grub-live should already be compatible with any Debian based distribution as mentioned on top of this wiki page. Testing is very limited.

Qubes support:

  • That would require packaging grub-live for Fedora.
  • Or as a first step copying over the config files.

What grub-live technically in essence does:

Footnotes[edit]

  1. Based on this askubuntu answerarchive.org.
  2. Meaning, grub-live outside of a virtual machine. For grub-live in a VM, see Live Mode.
  3. Assuming Tails on a DVD which can only be written to once, not DVD-RW.
  4. Or using Tails USB with a physical, active, and effective (non-circumventable by software) write protection switch enabled.
  5. As in a substantial user group willing and able to do this.
  6. This would be a prudent approach but search engines indicate that no or very few users run this configuration.
  7. Excluding malware compromise.
  8. 8.0 8.1 8.2 8.3 8.4 8.5 8.6 8.7 Once targeted malware is active it can circumvent read-only settings, mount the harddrive, and add malware which becomes active after next boot.
  9. 9.0 9.1 9.2 Quote https://tails.boum.org/contribute/design/archive.org

    Tails takes care not to use any filesystem that might exist on the host machine hard drive, unless explicitly told to do so by the user. The Debian Live persistence feature is disabled by passing nopersistence over the kernel command line to live-boot.

  10. 10.0 10.1 10.2 Quote https://tails.boum.org/contribute/design/#index39h3archive.org

    Removable drives auto-mounting is disabled in Tails 0.7 and newer.

    https://gitlab.tails.boum.org/tails/tails/-/blob/master/config/chroot_local-includes/etc/dconf/db/local.d/00_Tails_defaultsarchive.org

  11. https://gitlab.tails.boum.org/tails/tails/-/blob/master/config/chroot_local-includes/etc/dconf/db/local.d/00_Tails_defaultsarchive.org contains a configuration for GNOME only. This is reasonable in the Tails context since its default desktop is GNOME and others are unsupported.
  12. Considered a feature or bug?
  13. Then a meta package amnesia could depend on both grub-live and wiperam to simplify live boot for users.
  14. 14.0 14.1 14.2 https://tails.boum.org/contribute/design/memory_erasure/archive.org
  15. https://github.com/QubesOS/qubes-issues/issues/1563archive.org
  16. 16.0 16.1 16.2 https://gitlab.tails.boum.org/tails/tails/-/issues/5356archive.org
  17. The user being aware of currently running in live mode vs persistent mode.
  18. Without Live Mode Indicator (see below) it is not obvious to the user if they booted into persistent or live mode. This might lead to a mistake where live boot is not selected from the grub boot menu (persistent mode is instead set), but the user believes otherwise.
  19. 19.0 19.1 19.2 Consistently good because amnesia has always has been a core Tails feature. It is obvious to the user that nothing persists except folders that have selective persistence enabled.
  20. https://github.com/Kicksecure/desktop-config-distarchive.org
  21. Kicksecure is primarily run inside virtualizers. grub-live is an extra configuration step on the user's host.
  22. 22.0 22.1 Using standard package managers such as apt.
  23. Such as from Debian stretch to Debian buster.
  24. 24.0 24.1 24.2 Release upgrade of Tails from lets say Debian stretch to Debian buster is a non-trivial development effort. See also: https://tails.boum.org/doc/upgrade/archive.org
  25. 25.0 25.1 Persistent boot is the default option in grub boot menu.
  26. 26.0 26.1 26.2 https://tails.net/doc/persistent_storage/index.en.htmlarchive.org

Unfinished: This wiki is a work in progress. Please do not report broken links until this notice is removed, use Search Engines First and contribute improving this wiki.

We believe security software like Kicksecure needs to remain Open Source and independent. Would you help sustain and grow the project? Learn more about our 12 year success story and maybe DONATE!
