Onion Services

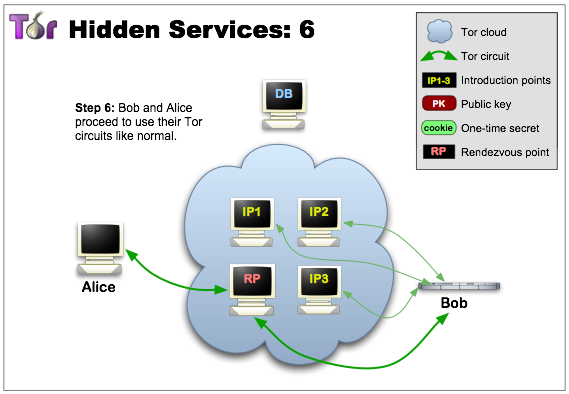

Tor makes it possible for users to hide their locations while offering various kinds of services, such as web publishing or an instant messaging server. [...] other Tor users can connect to these onion services, formerly known as hidden services, each without knowing the other's network identity. [1]
Why use Whonix for Hosting Onion Services[edit]
From https://www.whonix.org/#security [click expand] the most relevant features are:
- Impossible to leak IP address
- Discovery and traffic analysis attacks
- TCP ISN CPU Information Leak Protection
- Time Attack Defenses
All of the above are elaborate on above link.
Hosting onion services without Whonix and not having an IP leak is very difficult. See footnote for references. [2] It's so complex that without Whonix or something similar to Whonix is is most likely unavoidable to prevent an IP leak. Additionally:
- Even if somebody hacks the hidden server software -- such as
micro-httpd
,nginx
, orapache
-- the attacker cannot steal the onion service key or bypass Tor; see Attack on Whonix. The reason is the key is stored on the Whonix-Gateway™. Once the Whonix-Workstation™ is cleaned, it is no longer possible for an adversary to impersonate the onion service.- An exception to this is if onion services are created by software running on Whonix-Workstation (examples documented at the time of writing are ZeroNet, OnionShare and Bisq). [3] This is opt-in and not happening by default or accident. When following the instructions on this page, this exception does not apply.
Tor Onion Services: Configuration[edit]
Introduction[edit]
Newcomers to this topic are recommended to first read the following Tor Project and Riseup documentation entries to better understand how onion services work, how they are safely configured outside of Whonix, and suggested best practices:
- Tor: Onion Service Protocol (.onion) (general information);
- Configuring Onion Services for Tor (.onion) (standard setup, no isolated proxy); and
- Best Practices for Hosting Onion Services (installation, configuration and protecting services)
Note that onion services are always only reachable using Tor or tunnel services, such as tor2web; caution is warranted if using a tunnel service.
For possible alternatives to onion services, see: Hosting Location Hidden Services.
Advantages[edit]
Onion addresses do not require Secure Sockets Layer (SSL) or Transport Layer Security (TLS) [4], because connections to Tor onion services are end-to-end encrypted by default. [5] [6] This is handy, as it is unnecessary to bother with self signed certificates or certificate authorities.
Another interesting onion service property is they can serve as a drop-in Global Server Load Balancing and Layer 3 DDoS-resistance solution. [7] This raises the bar to withstanding attacks that the entire Tor network can tolerate; the same applies to I2P Eepsites. Tor can also be considered a very simple to configure, encrypted transport alternative to IPSec. [8]
Disadvantages[edit]
The following Tor onion services disadvantages are general onion services issues. unspecific to Whonix.
- Online detection: Potential adversaries can detect whether the onion service (and presumably Tor) is up and running or not.
- No revocation: Revocation (similar to the GnuPG's revocation certificate feature) for onion services does not exist yet.
- No seed phrase backup: Creating backups of onion service private keys is more difficult than backup of most crypto currency wallets. A seed phrase based backup for onion service does not exist. To backup the private key for an onion service, the onion service private key file needs to be backed up. This is documented below.
Web Server Software Recommendations[edit]
If your needs are limited to hosting static pages, then look no further than micro-httpd
which is available from Debian repositories. It is a bare-bones daemon made up of 150 lines of code. [9]
It is best to avoid the Apache
web server because it has much more functionality, leak potential and attack surface than smaller and lighter alternatives. If the Apache web server will be used regardless, refer to the following footnotes. [10] [11]
The Nginx
web server is a recommended alternative to Apache
. If the Nginx
web server will be used regardless, refer to the following footnotes. [12]
Security Recommendations[edit]
Table: Onion Service Security Recommendations
Domain | Recommendation |
---|---|
ALPaCA | An advanced website fingerprinting client/server mitigation named ALPaCA is in development that applies server-side padding to requests sent out to Tor Browser. When finalized, service operators can run it to protect against this class of correlation attacks. [16] [17] [18] |
Application Level Leaks | Beware of application level leaks; see Protocol Leak Protection and Fingerprinting Protection for a definition. |
Captcha | mCaptcha.org - FLOSS Captcha |
Dedicated Onion Service Address | Each service you host should get its own dedicated onion address to prevent correlation between multiple instances running in the same VM. |
Dedicated SSH Server Onion Address | If hosting onion services on remote servers: Each server you host remotely should get its own dedicated onion address different from its service onion address. For example if xxx.onion is your onion web service then yyy.onion should be your private SSH server onion address. This is to increase the probability of still being able remote administrate your server through SSH should your separate onion service address be under DDOS (flood overload, resource exhaustion attack). See also recommendations for Remote Administration. |
Denial of Service (DoS) Attack Defense | A researcher has posted his experience keeping their onion up during a massive DDoS. [19] |
Disable Banners | Disable banners for SSH, FTP, SMTP and HTTP servers which leak information about the daemon's name and version. If the SSH instance is for private use, use it with an Authenticated Onion Service to protect the server from brute-force and remote exploitation. |
General Hardening | Additional pointers for hardening can be found in the Basic Security Guide and Advanced Security Guide sections of the Documentation. |
Hide IP Address |
|
Mitigate DoS Attacks | It is good practice to setup access to your site through reverse proxies to mitigate layer 7 DoS attacks. See for example Mitigating DDoS Attacks with NGINX and NGINX Plus. That way it may also be possible to block information leaks about your setup. |
OnionBalance | OnionBalance can help to prevent de-anonymization of an onion service by protecting it from becoming unavailable through denial of service attacks (DDOS). OnionBalance is mentioned in the security readme by vanguards author and Tor developer Mike Perry where he discusses attacks against onion services and defenses. OnionBalance is now available for onion v3 services [21], see: Cooking with Onions: Reclaiming the Onionbalance. See also Whonix OnionBalance documentation. |
Onion v3 | No longer use onion v2; see here. |
Server Software Hardening | If any instructions for hardening the server instructions are available it is recommended to apply them, even though Whonix is designed to prevent IP/DNS leaks. |
Vanguards | Vanguards protect against guard discovery and related traffic analysis attacks and is installed by default in Whonix. [22] See Vanguards for further information. |
HiddenServiceExportCircuitID
|
Consider using Tor configuration option HiddenServiceExportCircuitID . Please refer to Tor upstream documentation until this is documented. Help welcome.
|
HiddenServicePoWDefensesEnabled
|
Consider using Tor configuration option HiddenServicePoWDefensesEnabled . Please refer to Tor upstream documentation until this is documented. Help welcome. [23]
|
The following resources are also recommended reading:
- The Tor Project: Onion service DoS guidelines (.onion)
- Riseup: Best Practices for Hosting Onion Services
Setup Overview[edit]
Optional.
In Whonix, server applications typically run in a Whonix-Workstation, while Tor networking is handled by the Whonix-Gateway. This separation enhances security and anonymity.
Network Flow:
- 1) Tor connections reach the Whonix-Gateway.
- 2) Whonix-Gateway's Tor forwards connections to the Whonix-Workstation
HiddenServicePort
TARGET
(IP, port) based on the Tor configuration. - 3) The Whonix-Workstation's firewall allows these forwarded connections.
- 4) The server application in the Whonix-Workstation processes the connections.
Instructions Overview:
NOTE: These is just a short overview. More detailed instructions can be find below. The user can skip reading this chapter.
1. Install and configure the server application inside Whonix-Workstation.
2. Configure the application to listen on all network interfaces 0.0.0.0
inside Whonix-Workstation. For elaboration and alternatives, see footnote. [24]
3. Edit Whonix-Workstation firewall configuration to open the port.
4. Reload the Whonix-Workstation firewall to apply the configuration changes.
5. Edit the Tor configuration file in Whonix-Gateway to add a HiddenServicePort
so a Tor onion will opening a listening port on that VIRTPORT
.
6. Reload Tor configuration.
7. Retrieve the .onion
address.
8. Test.
9. Done.
Hidden Webserver[edit]
Whonix-Gateway[edit]
Perform all the following steps on the Whonix-Gateway.
Step 1: Open Tor Configuration[edit]
On the Whonix-Gateway.
Open file /usr/local/etc/torrc.d/50_user.conf
in a text editor of your choice with sudoedit
.
If you are using Qubes-Whonix™, complete the following steps.
Qubes App Launcher (blue/grey "Q")
→ Whonix-Gateway™ ProxyVM (commonly named sys-whonix)
→ Tor User Config (Torrc)
If you are using a graphical Whonix-Gateway, complete the following steps.
Start Menu
→ Applications
→ Settings
→ /usr/local/etc/torrc.d/50_user.conf
If you are using a terminal-only Whonix-Gateway, complete the following steps. sudoedit /usr/local/etc/torrc.d/50_user.conf
Step 2: Edit Tor Configuration[edit]
On the Whonix-Gateway.
This step is necessary for all Whonix platforms.
Three settings must be added to /usr/local/etc/torrc.d/50_user.conf
:
- A
HiddenServiceDir
configuration directive declaring where onion services files (hostname file and private key file) should be stored. - A
HiddenServicePort
configuration directive declaring:VIRTPORT
(virtual port); andTARGET
, IP and port of the Whonix-Workstation that will run a server service that processes incoming onion service connections.
HiddenServiceVersion
configuration directive declaring which onion service version to utilize (2
or3
).
On the Whonix-Gateway.
To specify necessary settings, add the following three lines.
Notes:
- The
HiddenServiceDir
in the following example uses/var/lib/tor/hidden_service/
. This is OK if using 1 onion service. If using multiple onion services, replace the folder namehidden_service
with something else. For exampleHiddenServiceDir /var/lib/tor/hidden_service2/
- The
HiddenServicePort
in the following example uses port80
asVIRTPORT
. The virtual port can be set to something else, depending on the server service to be provided. - The
HiddenServicePort
in the following example usesTARGET
IP address and portIP:80
. In other words, the target IP addresses is followed by a colon (":
") which is then followed by the target port number with no spaces. The target port number in this example80
can be set to something else, depending on the server service to be provided.
Make sure to replace IP-of-q-ws-AppVM
with the actual IP address of the Whonix-Workstation.
Qubes-Whonix™ note: The IP of Whonix-Workstation™ AppVM needs to be replaced with the actual IP address. To find out the IP address of the Qubes-Whonix™ Whonix-Workstation™ AppVM, the following command can be run within the Qubes-Whonix™ Whonix-Workstation™ AppVM.
qubesdb-read /qubes-ip
Do not use IP 10.152.152.11
because that only works with Non-Qubes-Whonix but not with Qubes-Whonix. The IP 10.152.152.11
in line starting with HiddenServicePort
needs to be replaced.
HiddenServiceDir /var/lib/tor/hidden_service/ HiddenServicePort 80 IP-of-q-ws-AppVM:80 HiddenServiceVersion 3
HiddenServiceDir /var/lib/tor/hidden_service/ HiddenServicePort 80 10.152.152.11:80 HiddenServiceVersion 3
In all Whonix platforms, save the changes.
Step 3: Configure Onion Services Authentication[edit]
Optional: authenticated onion services.
Onion services authentication is only possible for private onion services with a limited number of visitors. This is impossible for a public onion service. For a public onion service this step should be skipped. Each visitor needs to be provided with a key file. This chapter describes the server side. The client side is described further below in chapter Onion Service Authentication Client Setup.
With v3 onions addresses it is no longer possible for adversaries to learn about their existence if they are not published -- this was not the case previously with v2 onion addresses. Therefore, some readers might wonder what is the purpose of onion services authentication for v3 onions.
Authentication for v3 onions exists to eliminate the side risks of the onion address accidentally being leaked. This is feasible due to human error, a bug in the software using the onion address, or other yet unknown possibilities. By using onion services authentication, the onion service could not be accessed even if the onion address was leaked.
Quote: [25]
Also, if you have multiple users, having one v3 address with authentication is much better than multiple addresses, for the following reasons:
- easier management
- easier to configure and easier to maintain the application behind it (web server or whatever it is)
- less resources needed by the Tor daemon
- less load on your guard(s) / bridge(s), thus more capacity and better experience for your clients / visitors (if you have multiple addresses you need to maintain active introduction point circuits for all of them, publish descriptors, etc.)
On the Whonix-Gateway.
sudo anon-auth-autogen
Read the output.
Example output. Will differ in your case.
INFO: Created torconffile '/usr/local/etc/torrc.d/43_hidden_service_hs_autogen.conf'. INFO: Reloading Tor. INFO: Giving Tor 5 seconds to create hidden service file. INFO: Installed ".auth" file (public key) '/var/lib/tor_autogen/hidden_service/1.auth' to '/var/lib/tor_autogen/hidden_service/1.auth' to allow client '1' to access hsname 'hidden_service' onion_url 'r3yzyxa2iptypjd2db7wl2ju62kyl5aq7mjmwl3wj4eim2y7kafztiid.onion'. INFO: Reloading Tor again to activate ".auth" (public key) file for client '1'. INFO: You need to provide client '1' with ".auth_private" file (private key) '/var/lib/tor_autogen/hidden_service/1.auth_private'. INFO: Visitors that use {{project_name_short}} could store '/var/lib/tor_autogen/hidden_service/1.auth_private' in '/home/user/1.auth_private' and then run 'sudo sourcefile=/home/user/1.auth_private anon-server-to-client-install'.
In above example the onion hostname is r3yzyxa2iptypjd2db7wl2ju62kyl5aq7mjmwl3wj4eim2y7kafztiid.onion
without any apostrophe ("'
") at the beginning or end.
Send the ".auth_private" file (private key) file /var/lib/tor_autogen/hidden_service/1.auth_private
to the intended visitor of the authenticated onion v3 service. Related: File Transfer. [26]
The visitor should follow instructions for the client side as described further below in chapter Onion Service Authentication Client Setup.
Step 4: Denial of Service Mitigation Options[edit]
Documentation for Denial of Service Mitigation Options is incomplete. Contributions are happily considered!
This step requires Tor 0.4.2.5 and above, see: Tor 0.4.25 release how can we upgrade.
Also refer to the Tor manual and search for DENIAL OF SERVICE MITIGATION OPTIONS
.
Nothing Whonix specific regarding installation from source. As per:
See also: Onion Services DDOS Defense Tor 0.4.2.5
Step 5: Make Tor Configuration Changes Take Effect[edit]
On the Whonix-Gateway.
Reload Tor.
After changing Tor configuration, Tor must be reloaded for changes to take effect.
Note: If Tor does not connect after completing all these steps, then a user mistake is the most likely explanation. Recheck /usr/local/etc/torrc.d/50_user.conf
and repeat the steps outlined in the sections above. If Tor then connects successfully, all the necessary changes have been made.
If you are using Qubes-Whonix™, complete the following steps.
Qubes App Launcher (blue/grey "Q")
→ Whonix-Gateway™ ProxyVM (commonly named 'sys-whonix')
→ Reload Tor
If you are using a graphical Whonix-Gateway, complete the following steps.
Start Menu
→ Applications
→ Settings
→ Reload Tor
If you are using a terminal-only Whonix-Gateway, click
HERE
for instructions.
Complete the following steps.
Reload Tor.
sudo service tor@default reload
Check Tor's daemon status.
sudo service tor@default status
It should include a a message saying.
Active: active (running) since ...
In case of issues, try the following debugging steps.
Check Tor's config.
sudo -u debian-tor tor --verify-config
The output should be similar to the following.
Sep 17 17:40:41.416 [notice] Read configuration file "/usr/local/etc/torrc.d/50_user.conf". Configuration was valid
Step 6: Retrieve the Onion Hostname[edit]
On the Whonix-Gateway.
To retrieve your Tor onion service url, run.
sudo cat /var/lib/tor/hidden_service/hostname
Note: If you only have 1 onion site, and the above returns cat: /var/lib/tor/hidden_service/hostname: No such file or directory
, then you may need to restart Tor. This can be accomplished simply by stopping, then starting Tor.
Step 7: Backup the Tor Onion Service Private Key[edit]
On the Whonix-Gateway.
Reminder: Always backup the onion service key. This is necessary in order to restore it on another machine, on a newer Whonix-Gateway™, after HDD/SSD failure, etc. Follow the instructions below to find its location; root permission is required to access it.
/var/lib/tor/hidden_service/hs_ed25519_secret_key
The following example shows how to copy the /var/lib/tor/hidden_service/hs_ed25519_secret_key from the sys-whonix VM to the vault VM (which should be started beforehand) using qvm-copy. A dialog will appear asking for the destination VM.
sudo qvm-copy /var/lib/tor/hidden_service/hs_ed25519_secret_key
When the dialog appears asking to confirm, select vault. This copies the Tor onion service private key file to the QubesIncoming folder of the vault VM.
/home/user/QubesIncoming/sys-whonix/hs_ed25519_secret_key
Consider moving the file from the QubesIncoming folder to another preferred location.
Qubes VM Manager can be used to conveniently backup the vault and/or other VMs. Please refer to the Qubes backups documentation for necessary steps to accomplish that.
See also:
- file manager Thunar with Administrator Rights
- File Transfer
Whonix-Workstation[edit]
Perform all the following steps on the Whonix-Workstation.
Step 1: Install Server Software[edit]
On the Whonix-Workstation.
Install either micro-httpd
or nginx
.
A) Run the following commands to install micro-httpd
. OR
Install package(s) micro-httpd
. Follow steps A to E.
A Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: In Template.
B Update the package lists and upgrade the system .
sudo apt update && sudo apt full-upgrade
C Install the micro-httpd
package(s).
Using apt
command line
--no-install-recommends
option
is in most cases optional.
sudo apt install --no-install-recommends micro-httpd
D Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: Shut down Template and restart App Qubes based on it as per Qubes Template Modification .
E Done.
The procedure of installing package(s) micro-httpd
is complete.
B) Run the following commands to install nginx
.
Install package(s) nginx
. Follow steps A to E.
A Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: In Template.
B Update the package lists and upgrade the system .
sudo apt update && sudo apt full-upgrade
C Install the nginx
package(s).
Using apt
command line
--no-install-recommends
option
is in most cases optional.
sudo apt install --no-install-recommends nginx
D Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: Shut down Template and restart App Qubes based on it as per Qubes Template Modification .
E Done.
The procedure of installing package(s) nginx
is complete.
Step 2: Open Whonix-Workstation Firewall Port[edit]
On the Whonix-Workstation.
Modify Whonix-Workstation™ User Firewall Settings
Note: If no changes have yet been made to Whonix Firewall Settings, then the Whonix User Firewall Settings File /etc/whonix_firewall.d/50_user.conf
appears empty (because it does not exist). This is expected.
If using Qubes-Whonix™, complete these steps.
In Whonix-Workstation App Qube. Make sure folder /usr/local/etc/whonix_firewall.d
exists.
sudo mkdir -p /usr/local/etc/whonix_firewall.d
Qubes App Launcher (blue/grey "Q")
→ Whonix-Workstation App Qube (commonly called anon-whonix)
→ Whonix User Firewall Settings
If using a graphical Whonix-Workstation, complete these steps.
Start Menu
→ Applications
→ System
→ User Firewall Settings
If using a terminal-only Whonix-Workstation, complete these steps.
Open file /usr/local/etc/whonix_firewall.d/50_user.conf
with root rights.
sudoedit /usr/local/etc/whonix_firewall.d/50_user.conf
For more help, press on Expand on the right.
Note: This is for informational purposes only! Do not edit /etc/whonix_firewall.d/30_whonix_workstation_default.conf
.
The Whonix Global Firewall Settings File /etc/whonix_firewall.d/30_whonix_workstation_default.conf
contains default settings and explanatory comments about their purpose. By default, the file is opened read-only and is not meant to be directly edited. Below, it is recommended to open the file without root rights. The file contains an explanatory comment on how to change firewall settings.
## Please use "/etc/whonix_firewall.d/50_user.conf" for your custom configuration, ## which will override the defaults found here. When {{project_name_short}} is updated, this ## file may be overwritten.
Also see: Whonix modular flexible .d style configuration folders.
To view the file, follow these instructions.
If using Qubes-Whonix, complete these steps.
Qubes App Launcher (blue/grey "Q")
→ Template:
whonix-workstation-17
→ Whonix Global Firewall Settings
If using a graphical Whonix-Workstation, complete these steps.
Start Menu
→ Applications
→ Settings
→ Global Firewall Settings
If using a terminal-only Whonix-Workstation, complete these steps.
In Whonix-Workstation, open the whonix_firewall configuration file in an editor. nano /etc/whonix_firewall.d/30_whonix_workstation_default.conf
Add.
Note: If a different TARGET
has been used in step 2, it needs to be changed here as well.
EXTERNAL_OPEN_PORTS+=" 80 "
Save.
Reload Whonix-Workstation™ Firewall.
If you are using Qubes-Whonix™, complete the following steps.
Qubes App Launcher (blue/grey "Q")
→ Whonix-Workstation App Qube (commonly named anon-whonix)
→ Reload Whonix Firewall
If you are using a graphical Whonix-Workstation, complete the following steps.
Start Menu
→ Applications
→ System
→ Reload Whonix Firewall
If you are using a terminal-only Whonix-Workstation, run. sudo whonix_firewall
Step 3: Final Notes[edit]
The procedure is now complete.
Please note that it may take up to 30 minutes (or thereabouts) until a fresh .onion domain is reachable. Further, accessing 127.0.0.1
Local connections are no longer possible due to a change in Tor Browser by The Tor Project. Check Tor Browser, Local Connections for more information and a workaround.
Debugging[edit]
Whonix-Gateway[edit]
Check permissions.
sudo ls -la /var/lib/tor/hidden_service/
In case you manually restored the hidden_service keys as root, Tor will fail to start. The folder must be owned by debian-tor
. In that case, fix the permissions.
sudo chown debian-tor:debian-tor /var/lib/tor/hidden_service/
Whonix-Workstation[edit]
Check if the service is available on 127.0.0.1:80.
## Circumventing Whonix curl stream isolation wrapper. UWT_DEV_PASSTHROUGH=1 curl 127.0.0.1:80
Qubes-Whonix: In Qubes-Whonix Whonix-Workstation, check if the service is available on Qubes-Whonix-Workstation IP, port 80.
## Circumventing Whonix curl stream isolation wrapper. UWT_DEV_PASSTHROUGH=1 curl $(qubesdb-read /qubes-ip):80
Non-Qubes-Whonix: In Whonix-Workstation, check if the service is available on 10.152.152.11:80
.
## Circumventing Whonix curl stream isolation wrapper. UWT_DEV_PASSTHROUGH=1 curl 10.152.152.11:80
Note: Tor Browser will allow connections to 127.0.0.1:80
but not to 10.152.152.11:80
.
Setup Tips for any Onion Service[edit]
Please test the example Hidden Webserver above first; this helps in understanding the process in general and will ease debugging. The following material is quoted directly from the Tor manual:
HiddenServiceDir DIRECTORY Store data files for a hidden service in DIRECTORY. Every hidden service must have a separate directory. You may use this option multiple times to specify multiple services. If DIRECTORY does not exist, Tor will create it. Please note that you cannot add new Onion Service to already running Tor instance if Sandbox is enabled.
HiddenServicePort VIRTPORT [TARGET] Configure a virtual port VIRTPORT for a hidden service. You may use this option multiple times; each time applies to the service using the most recent HiddenServiceDir. By default, this option maps the virtual port to the same port on 127.0.0.1 over TCP. You may override the target port, address, or both by specifying a target of addr, port, addr:port, or unix:path. (You can specify an IPv6 target as [addr]:port. Unix paths may be quoted, and may use standard C escapes.) You may also have multiple lines with the same VIRTPORT: when a user connects to that VIRTPORT, one of the TARGETs from those lines will be chosen at random. Note that address-port pairs have to be comma-separated.
Hidden VoIP Server[edit]
On the VoIP page is an example for a Hidden VoIP Mumble Server.
Troubleshooting[edit]
Onion Services Reliability Issues[edit]
Experience report by a Whonix developer.
I am monitoring Whonix onion and an unpublished onion. There are reliability issues. 2-3 times per day, the onion is inaccessible. Isn't caused by Whonix. Even no Whonix involved. These are general Tor onion connectivity issues. Can't reproduce reliably. And I am not the only one. Therefore I didn't look into bug reporting yet.
Potential occasionally issues:
Watch Logs[edit]
On Whonix-Gateway. Run the following command to watch both, vanguards and Tor's log output.
sudo journalctl -u vanguards -u tor@default -f
Bug[edit]
torsocks curl http://onionv3redacted.onion
curl output might include:
1593531192 ERROR torsocks[2452]: Host unreachable (in socks5_recv_connect_reply() at socks5.c:539) curl: (7) Couldn't connect to server
Tor vanguards log might include:
Possible Tor bug, or possible attack if very frequent: Got 1 dropped cell on circ 279088 (in state HS_SERVICE_REND HSSR_JOINED; old state HS_SERVICE_REND HSSR_CONNECTING) We force-closed circuit 281935 Tor bug #29699: Got 1 dropped cell on circ 281934 (in state HS_SERVICE_INTRO HSSI_ESTABLISHED; old state HS_SERVICE_INTRO HSSI_CONNECTING). We force-closed circuit 281934
https://gitlab.torproject.org/legacy/trac/-/issues/29699 -> https://gitlab.torproject.org/legacy/trac/-/issues/26806 ->
- https://gitlab.torproject.org/legacy/trac/-/issues/29699 ( Tor: 0.4.3.x-final )
- https://gitlab.torproject.org/legacy/trac/-/issues/15618
- https://github.com/mikeperry-tor/vanguards/blob/a214408c09ad092d415ff1a0e7fec135c30e609e/src/vanguards/bandguards.py
- https://github.com/mikeperry-tor/vanguards/issues/37
- https://github.com/mikeperry-tor/vanguards/issues/37#issuecomment-472963014
- https://gitlab.torproject.org/legacy/trac/-/issues/29700
Tor Onion Services: Advanced Topics[edit]
OnionBalance[edit]
OnionBalance Introduction[edit]
OnionBalance can help to prevent de-anonymization of an onion service by protecting it from becoming unavailable through denial of service attacks (DDOS).
This chapter OnionBalance is Unsupported! Forum discussion: https://forums.whonix.org/t/onionbalance-help/9965/10
Prerequisite knowledge:
- How to setup a "normal" Onion Service without OnionBalance with Whonix as per instructions earlier on this wiki page. The user should abstain from proceeding without having exercised that beforehand.
- The location of the
HiddenServiceDir
. For example, folder/var/lib/tor/hidden_service
or a different one if previously modified by the user. - The meaning of the
HiddenServicePort
configuration directive as documented above.
Overview:
(Modified quote of upstream original OnionBalance documentation)
1. We will start by setting up the frontend host. We will install onionbalance and we will run onionbalance so that it generates a frontend onion service configuration.
2. We will then setup the backend instances by configuring Tor as an onion service and putting it into “onionbalance instance” mode.
3. In the end of the guide, we will setup onionbalance by informing it about the backend instances, and we will start it up. After this, we should have a working onionbalance configuration.
Ingredients:
(Modified quote of upstream original OnionBalance documentation)
To follow this recipe to completion we will need the following ingredients:
- A) A Whonix-Gateway that will run OnionBalance and act as the load balancing frontend; and
- B) two or more Whonix-Gateway that will run the backend Tor instances.
Notes:
The following notes are here for clarification. However, should these notes add more confusion than clarification, the user can also disregard these notes for now and re-read them later at the end. If the user is proceeding as documented after these notes, then there will be no issue as raised in these notes, which only applies to very specific custom user configurations.
- The OnionBalance frontend Whonix-Gateway can run "standalone" without any accompanying Whonix-Workstation.
- Using a Whonix-Workstation in conjunction with the frontend Whonix-Gateway would be optional. Such a Whonix-Workstation would not provide any server services / open ports. Most users would probably not need it in such a setup.
- The OnionBalance backend Whonix-Gateway (where Tor is providing an onion service) should probably be run in conjunction Whonix-Workstation (where a server service such as for example a web server would open a port).
- Using
HiddenServicePort
as documented above would be secure. That is because the connection from Tor on the Whonix-Gateway to the Whonix-Workstation would stay inside an internal, virtual local area network (LAN), not exposed to the open internet. - Using a server service hosted in yet another server such as if using something similar to
HiddenServicePort 80 IP-of-an-external-server:80
would be insecure. That is because Tor's outgoing connection to reach the server service is unauthenticated and unencrypted.- If the user is intending to do that, it is recommended to first use the
HiddenServicePort
"normally" to the Whonix-Workstation, then forward it to a different server hosted in a different location of an authenticate and encrypted tunnel. This specific configuration is unspecific to Whonix and undocumented.
- If the user is intending to do that, it is recommended to first use the
- Using
- This is also illustrated in the following table.
Frontend | Backend | |
---|---|---|
Whonix-Gateway | Yes, required. | Yes, required. |
Whonix-Workstation | No, not needed. | Highly recommended, but not required, see notes above. |
Comments on upstream original OnionBalance documentation:
These comments are only important when wondering why this documentation is different from upstream documentation. Most users can skip reading these comments.
- Documentation is good but it is not written specifically for any specific Linux distribution such as Debian or for using a Debian package. Doing the same on Debian, Whonix, let alone Qubes results in some loose ends which are difficult for users to resolve. Therefore this documentation attempts to handle these peculiarities.
- Installation from Debian package sources which Whonix users can benefit from is a lot easier.
- No need to use
git clone
,cd tor
,autogen
,configure
,make
thanks to the availability of a Debian package. - This documentation on this wiki page uses configuration folder
/etc/onionbalance
as that is the Debian way, the way how to Debianonionbalance
package supposes this should be done. - By using the same file location
/etc/onionbalance/config.yaml
as assumed by the Debian OnionBalance package also package provided systemd unit file/lib/systemd/system/onionbalance.service
can be used which takes care of automatically starting OnionBalance after reboot. - Setting
SocksPort 0
should not be used as this disables using Tor as a client for outgoing connections which is required by Whonix-Gateway. - Setting
ControlPort 127.0.0.1:6666
should not be used because Whonix default Tor configuration already provides a Tor unix domain control socket. - Setting
DataDirectory /home/user/frontend_data/
should not be used because Whonix uses the Tor Debian package which is already preconfigured by default and as appropriate using/var/lib/tor
as data directory. - Starting OnionBalance using
onionbalance -v info -c config/config.yaml -p 6666
should probably be avoided unless that command is modified and used for debugging.- The part of the command
-p 6666
should not be used as there is no such Tor control port in Debian or Whonix. Instead the Tor control socket (pre-configured inside Whonix) should be used. - OnionBalance should be started using the Debian OnionBalance package provided systemd unit.
- The part of the command
With this in mind, the user can view the upstream documentation too which is of course more authoritative than the third party documentation written here.
OnionBalance Frontend Setup Part One[edit]
On the Whonix-Gateway OnionBalance frontend server.
1. OnionBalance Package Installation
- Non-Qubes-Whonix™: Inside Whonix-Gateway.
- Qubes-Whonix: Inside Template (
whonix-gateway-17
).
Install package(s) onionbalance
. Follow steps A to E.
A Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: In Template.
B Update the package lists and upgrade the system .
sudo apt update && sudo apt full-upgrade
C Install the onionbalance
package(s).
Using apt
command line
--no-install-recommends
option
is in most cases optional.
sudo apt install --no-install-recommends onionbalance
D Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: Shut down Template and restart App Qubes based on it as per Qubes Template Modification .
E Done.
The procedure of installing package(s) onionbalance
is complete.
- Non-Qubes-Whonix: No special action required. Skip this step.
- Qubes-Whonix: Shut down Template.
2. Platform Specific Notice
- Non-Qubes-Whonix: No special action required. Skip this step.
- Qubes-Whonix: Apply the following steps.
Inside Template (Qubes-Whonix Whonix-Gateway (sys-whonix
).
1. Make sure folder /rw/config/qubes-bind-dirs.d
exists.
sudo mkdir -p /rw/config/qubes-bind-dirs.d
2. Open file /rw/config/qubes-bind-dirs.d/50_user.conf
in an editor with root rights.
Non-Qubes-Whonix™
This box uses sudoedit
for better security.
sudoedit /rw/config/qubes-bind-dirs.d/50_user.conf
Qubes-Whonix™
NOTES:
- When using Qubes-Whonix, this needs to be done inside the Template.
sudoedit /rw/config/qubes-bind-dirs.d/50_user.conf
- After applying this change, shutdown the Template.
- All App Qubes based on the Template need to be restarted if they were already running.
- This is a general procedure required for Qubes and unspecific to Qubes-Whonix™.
Others and Alternatives
- This is just an example. Other tools could achieve the same goal.
- If this example does not work for you or if you are not using Whonix, please refer to this link.
sudoedit /rw/config/qubes-bind-dirs.d/50_user.conf
3. Paste.
binds+=( '/etc/onionbalance' )
4. Save.
5. Reboot the app qube.
6. Done.
3. Initial frontend server OnionBalance Config File Creation and master service private key generation.
An OnionBalance config file needs to be generated.
Inside Whonix-Gateway (sys-whonix
).
Syntax:
Note: Do not copy/paste/use this syntax without modification.
sudo onionbalance-config --output /etc/onionbalance --hs-version v3 -n number-of-backend-address-slots
Example:
Note: Replace 3
with the actual number of backend address slots such as for example 4
.
sudo onionbalance-config --output /etc/onionbalance --hs-version v3 -n 3
Above command will have generated two files.
- The OnionBalance config file:
/etc/onionbalance/config.yaml
, and - the OnionBalance master service private key. Example:
dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.key
- Note: the actual name will be different.
The config file can be easily modified with a text editor at any time.
4. View the OnionBalance configuration folder.
This is just for informational purposes as system adminstarors should have an idea in which locations configuration files and private keys are stored.
ls /etc/onionbalance
4. Retrieve the OnionBalance Frontend Hostname
To retrieve your OnionBalance Frontend onion service url, run.
sudo cat /etc/onionbalance/config.yaml | grep key
Example printout:
key: dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.key
dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad
is an example, will be different.- Remove
key:
. - Replace
.key
with.onion
.
In that case the the frontend’s onion address is:
dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.onion
A note (such as in a text file) with the frontend’s onion address should be created for later reference by the user.
OnionBalance Backend Setup[edit]
On the Whonix-Gateway (sys-whonix
) OnionBalance backend servers.
1. Setup an Onion Service "normally" without OnionBalance first.
Similar as documented in instructions above for Hidden Webserver.
Note: This step is mandatory. Skipping this step will result in a failure. [27]
2. Test the "normal" Onion Service.
The user must verify that the onion service is reachable such as for example by visiting a hidden web server onion domain using Tor Browser. If it is unreachable, then there is no point in proceeding as OnionBalance will be unable to magically if this issue.
3. Open file /usr/local/etc/torrc.d/50_user.conf
in a text editor of your choice with sudoedit
.
If you are using Qubes-Whonix™, complete the following steps.
Qubes App Launcher (blue/grey "Q")
→ Whonix-Gateway™ ProxyVM (commonly named sys-whonix)
→ Tor User Config (Torrc)
If you are using a graphical Whonix-Gateway, complete the following steps.
Start Menu
→ Applications
→ Settings
→ /usr/local/etc/torrc.d/50_user.conf
If you are using a terminal-only Whonix-Gateway, complete the following steps. sudoedit /usr/local/etc/torrc.d/50_user.conf
4. Append.
HiddenServiceOnionbalanceInstance 1
5. Save.
6. ob_config
File Creation
The ob_config
file needs to be created and point to the MasterOnionAddress
.
1. Find out the path to the ob_config
.
Path syntax: In the HiddenServiceDir
a file ob_config
needs to be created. For example when using the default HiddenServiceDir /var/lib/tor/hidden_service/
:
2. Open the ob_config
file.
Note: Replace /var/lib/tor/hidden_service
with a different path if the user is using a different HiddenServiceDir
.
Open file /var/lib/tor/hidden_service/ob_config
in an editor with root rights.
Non-Qubes-Whonix™
This box uses sudoedit
for better security.
sudoedit /var/lib/tor/hidden_service/ob_config
Qubes-Whonix™
NOTES:
- When using Qubes-Whonix, this needs to be done inside the Template.
sudoedit /var/lib/tor/hidden_service/ob_config
- After applying this change, shutdown the Template.
- All App Qubes based on the Template need to be restarted if they were already running.
- This is a general procedure required for Qubes and unspecific to Qubes-Whonix™.
Others and Alternatives
- This is just an example. Other tools could achieve the same goal.
- If this example does not work for you or if you are not using Whonix, please refer to this link.
sudoedit /var/lib/tor/hidden_service/ob_config
3. Paste.
Note: Replace dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.onion
with the actual MasterOnionAddress
.
MasterOnionAddress dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.onion
4. Done.
ob_config
file creation has been completed.
7. Make Tor Configuration Changes Take Effect
Reload Tor.
After changing Tor configuration, Tor must be reloaded for changes to take effect.
Note: If Tor does not connect after completing all these steps, then a user mistake is the most likely explanation. Recheck /usr/local/etc/torrc.d/50_user.conf
and repeat the steps outlined in the sections above. If Tor then connects successfully, all the necessary changes have been made.
If you are using Qubes-Whonix™, complete the following steps.
Qubes App Launcher (blue/grey "Q")
→ Whonix-Gateway™ ProxyVM (commonly named 'sys-whonix')
→ Reload Tor
If you are using a graphical Whonix-Gateway, complete the following steps.
Start Menu
→ Applications
→ Settings
→ Reload Tor
If you are using a terminal-only Whonix-Gateway, click
HERE
for instructions.
Complete the following steps.
Reload Tor.
sudo service tor@default reload
Check Tor's daemon status.
sudo service tor@default status
It should include a a message saying.
Active: active (running) since ...
In case of issues, try the following debugging steps.
Check Tor's config.
sudo -u debian-tor tor --verify-config
The output should be similar to the following.
Sep 17 17:40:41.416 [notice] Read configuration file "/usr/local/etc/torrc.d/50_user.conf". Configuration was valid
8. Test the OnionBalance Backend Onion Service.
The user must verify that the OnionBalance Backend reachable such as for example by visiting a hidden web server onion domain using Tor Browser. If it is unreachable, then there is no point in proceeding as OnionBalance will be unable to magically if this issue.
9. Good progress.
An OnionBalance backend instance has been set up.
10. Repeat these instructions for other OnionBalance backend instances.
11. Done.
The OnionBalance backend instances setup has been completed.
OnionBalance Frontend Setup Part Two[edit]
On the Whonix-Gateway OnionBalance frontend server.
1. OnionBalance Frontend Config File Setup
Open file /etc/onionbalance/config.yaml
in an editor with root rights.
Non-Qubes-Whonix™
This box uses sudoedit
for better security.
sudoedit /etc/onionbalance/config.yaml
Qubes-Whonix™
NOTES:
- When using Qubes-Whonix, this needs to be done inside the Template.
sudoedit /etc/onionbalance/config.yaml
- After applying this change, shutdown the Template.
- All App Qubes based on the Template need to be restarted if they were already running.
- This is a general procedure required for Qubes and unspecific to Qubes-Whonix™.
Others and Alternatives
- This is just an example. Other tools could achieve the same goal.
- If this example does not work for you or if you are not using Whonix, please refer to this link.
sudoedit /etc/onionbalance/config.yaml
2. Example of how the file initially will look like.
For informational purposes only.
# OnionBalance Config File services: - instances: - address: <Enter the instance onion address here> name: node1 - address: <Enter the instance onion address here> name: node2 - address: <Enter the instance onion address here> name: node3 key: dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.key
3. Edit.
- The textual strings
<Enter the instance onion address here>
have to be replaced with the actual onion service domain names. - The onion service domain names should not be encapsulated by
<
or>
.
Example, wrong, do not use | <wmilwokvqistssclrjdi5arzrctn6bznkwmosvfyobmyv2fc3idbpwyd.onion>
|
---|---|
Example, correct - only an example, do not use the same: | wmilwokvqistssclrjdi5arzrctn6bznkwmosvfyobmyv2fc3idbpwyd.onion
|
4. Example.
The user is free to disregards this example if too confusing.
services: - instances: - address: wmilwokvqistssclrjdi5arzrctn6bznkwmosvfyobmyv2fc3idbpwyd.onion name: node1 - address: fp32xzad7wlnpd4n7jltrb3w3xyj23ppgsnuzhhkzlhbt5337aw2joad.onion name: node2 - address: u6uoeftsysttxeheyxtgdxssnhutmoo2y2rw6igh5ez4hpxaz4dap7ad.onion name: node3 key: dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.key
Note: In above example, the following textual strings (onion service domain names) would have to be replaced with the actual onion service domain names used by the user.
wmilwokvqistssclrjdi5arzrctn6bznkwmosvfyobmyv2fc3idbpwyd.onion
fp32xzad7wlnpd4n7jltrb3w3xyj23ppgsnuzhhkzlhbt5337aw2joad.onion
u6uoeftsysttxeheyxtgdxssnhutmoo2y2rw6igh5ez4hpxaz4dap7ad.onion
dpkhemrbs3oiv2fww5sxs6r2uybczwijzfn2ezy2osaj7iox7kl7nhad.key
4. Save.
5. Start OnionBalance.
sudo systemctl restart onionbalance
No reboot is required at this time. However, OnionBalance should start automatically after reboot thanks to the systemd unit provided by the OnionBalance Debian package.
6. Check OnionBalance systemd unit status.
Optional. Useful for troubleshooting.
sudo systemctl status onionbalance
6. Check OnionBalance logs.
Optional. Useful for troubleshooting.
See the following wiki chapters. Note: The unit-name is onionbalance
.
7. Backup.
A backup of folder /etc/onionbalance
should be created. Similar to instructions for "normal" onion serivces but with folder /etc/onionbalance
. Alternatively, the user could make a backup of the whole VM.
8. Done.
The OnionBalance Frontend Setup has been completed.
OnionBalance Advanced Security[edit]
OnionBalance is mentioned in the vanguards security readme by vanguards author and Tor developer Mike Perry where he discusses attacks against onion services and defenses. Additional OnionBalance and/or vanguards settings might improve the security of the onion service, which is undocumented in Whonix wiki.
Onion Services Security Enhancements[edit]
Over time, The Tor Project is steadily releasing additional features which enhance onion services security. Recent efforts to protect against guard enumeration attacks include the vanguards add-on and additional torrc options to pin the second and third hops of onion service circuits to a list of nodes. To learn more about these enhancements and their optional configuration, see:
- Announcing the Vanguards Add-On for Onion Services
- Vanguards GitHub resource
- vanguards - Additional protections for Tor Onion Services
- Onion Service Guard Protection - HSLayer2Nodes / HSLayer3Nodes
How Onion Services Connections Work[edit]
To understand how onion services work, a simple overview of the process is outlined below. [28]
Step 1. Onion services advertise their existence in the Tor network. This is done by randomly picking some relays and building circuits, before asking these relays to act as introduction points by providing the service's public key. The onion server's location (IP address) is shielded.
Step 2. The onion service generates an onion service descriptor containing the public key and a summary of introduction points. This is signed with its private key and then uploaded to a distributed hash table, so users can find the service when searching for a .onion resource. [29] This also forms an important verification mechanism for the user to confirm they are talking to the right onion service.
Step 3. The user who learnt that the .onion resource exists requests more information from the database, by downloading the descriptor from the distributed hash table. If the descriptor exists, the user now knows the introduction points and the right public key to use. The user also creates a Tor circuit to another randomly picked relay to use as a rendezvous point (with a one-time secret).
Step 4. If the descriptor is present and the rendezvous point is ready, the user assembles an "introduce message". This is encrypted to the onion service's public key and includes the rendezvous point address and the one-time secret. The user requests this be delivered to the onion service (via a Tor circuit) anonymously, so the IP address remains hidden.
Step 5. The onion service decrypts the user's introduce message and finds the rendezvous point address and one-time secret in it. The service creates a circuit to the rendezvous point and sends the one-time secret to it in a rendezvous message. The onion service must use the same set of entry guards when creating circuits, to prevent attackers from forcing onion services to use corrupt relays as an entry node (and learning the onion server's IP address via timing analysis).
Step 6. The rendezvous point notifies the user the successful connection has been established. Both the user and onion service use their circuits to the rendezvous point for communication. The rendezvous point relays end-to-end encrypted messages from user to service and vice versa.
Use of .onion addresses leads to a 6 relay arrangement: 3 picked by the user (with the third used as a rendezvous point), and 3 picked by the onion service. The final successful connection between a user and an onion service is represented in the picture below.
Figure: Alice (User) and Bob (Onion Service) Successful Connection [30]
Onion Services Security[edit]
It is difficult to confirm exactly how safe Tor onion services are. Therefore, this section is intended as a repository of relevant facts, quotes and links to provide an estimation -- feel free to add further germane material.
Roger Dingledine, an original developer of Tor, addressed this issue in a 2013 tor-talk mailing list How easy are Tor hidden services to locate?:
Hidden services are definitely weaker than regular Tor circuits, a) because the adversary can induce them to speak, and b) because they stay at the same place over time. Mostly 'a'.
That said, there are plenty of hidden services out there, and few stories of people breaking their anonymity by breaking Tor. So they're not foolproof for sure, but they're also not trivial to deanonymize.
I'll turn it around, and ask "easy compared to what?"
Roger also added:
When you're a Tor client, you only use the Tor network when you choose to access it (e.g. by trying to fetch a web page). So if the attacker has some attack that works only a very small percentage of time, they have to wait for you to initiate connections.
But for a hidden service, they can cause you to initiate a connection just by visiting the hidden service. And they can do it as often as they want.
See https://www.freehaven.net/anonbib/#hs-attack06 for the original paper about this topic (and the reason we implemented entry guards).
And then see https://www.freehaven.net/anonbib/#wpes12-cogs for a more recent example. The goal of that paper is to understand how long it takes in normal operation (with entry guards going offline and being replaced) before a typical user touches an adversary-controlled guard node. For simplicity, the paper assumes that you use your guards every minute of every day for however many weeks or months it takes. A realistic user doesn't do that, so the paper overestimates the risk. But a realistic hidden service *would* do that, if the adversary caused it to.
--Roger
At the time of writing there are no known attacks used in the wild that consistently deanonymize Tor onion services. However, there is a plethora of Speculative Tor Attacks against the ecosystem that have been highlighted in research settings, including those that specifically target the server or client and server in combination. Therefore, Tor processes and anonymity protection might be seriously degraded under specific conditions.
A number of serious onion service concerns [31] have been mitigated since The Tor Project announced the release of v3 (HiddenServiceVersion 3
) onions in 2017, succeeding the original v2 onion service design, see: Tor's Fall Harvest: The Next Generation of Onion Services.
Onion Service Authentication Client Setup[edit]
There are two options to setup Onion Service Client Authentication. Choose either option A) or B).
- A) Tor Browser Onion Client Authorization, or
- B) Onion Service Client Authentication setup on Whonix-Gateway, see below.
These options should never be combined for the same onion service.
To setup Onion Service Client Authentication setup on Whonix-Gateway, perform the following instructions.
1. Receive ".auth_private" file (private key) (for example: 1.auth_private
) from authenticated onion v3 service provider.
2. Move to Whonix-Gateway home folder /home/user
.
3. Install ".auth_private" file (private key).
sudo anon-server-to-client-install 1.auth_private
Example printout.
INFO: Installed ".auth_private" file (private key) '/home/user/1.auth_private' to '/var/lib/tor/authdir/1.auth_private'. INFO: Created torconffile '/usr/local/etc/torrc.d/43_clientonionauthdir.conf'. INFO: Reloading Tor to activate ".auth_private" file (private key). INFO: Success.
3. Done.
The procedure of setting up Onion Service Client Authentication has been completed.
Notes about End-to-end Security of Onion Services[edit]
Hidden services are not really encrypted "end-to-end", they are only encrypted "Tor-to-end" (or "Tor-to-Tor"). The communication between the browser or server and Tor is sent in clear text. This does not really constitute a security issue, as localhost (or Workstation to Gateway on an isolated network), is supposed to be secure. But this does pose some security implications.
Firstly, with onion services alone and no TLS enabled, the adversary only needs to compromise Whonix-Gateway to gain knowledge of the content of the connection and the client's identity/location. To compromise the content of the connection, the adversary only needs to compromise either the gateway or the workstation.
With both onion services and TLS enabled, an adversary needs to compromise Whonix-Workstation to gain knowledge of the content of the connection. To gain knowledge of the client's identity/location, the adversary would have to compromise Whonix-Gateway as well.
Although it is possible to use onion services and TLS in combination -- that is, https://****************.onion
-- there are very few onion services reachable over TLS. For example, DuckDuckGo search engine https://duckduckgo.com/ can be reached over https://duckduckgogg42xjoc72x3sjasowoarfbgcmvfimaftt6twagswzczad.onion/. But since this only offers benefits to users of Whonix (and other Tor gateway implementations), there is little demand. However, it does provide some nice defense in depth because it eliminates a single point of failure.
This does raise the question as to how the TLS certificate can be verified. That is a simple process for private sites where the server and clients know each other; they simply verify it over a pre-shared secure channel, for example a meeting.
In regards to public onion services, certificate authorities previously refused to give out certificates for .onion sites, for example Startssl.com declined because .onion is no .gTLD, see: Bug #6116: apply for .onion gTLD at IANA. However, in DuckDuckGo's case, a certificate has been issued by DigiCert which confirms TLS certificates can be issued for people who can reasonably prove they own a .onion domain. Presumably evidence of domain control may include editing its contents upon their request. Nevertheless, little faith should be placed in certificate authorities, see: Transport Layer Security (TLS).
Finally, it should be noted that running onion services with Whonix is safer than running Tor and the server software on the same host, because even when misconfigured, there cannot be any IP or DNS leaks (by design).
Further reading:
- Don't HTTPS Your Onions (.onion)
- Get a TLS certificate for your onion site
- HTTPS for your onion service (.onion)
- (No) Onion TLS on the Whonix Website.
High Traffic Onion Service Scalability Performance[edit]
Although mostly focused on non-anonymous onion services, the tor-dev mailing list discussion onionbalance useful on same server / for high-spec non-location hidden servers? contains interesting information on scalability and performance of high traffic onion services. The tor-dev mailing list (sign-up) is considered a useful resource for technical information since they are receptive to genuine inquiries.
Performance[edit]
See Also[edit]
- Hosting Location Hidden Services
- Onion Services Guides
- Remote Administration including SSH / VNC (x2go) into Whonix
References[edit]
- ↑ https://2019.www.torproject.org/docs/onion-services.html.en
- ↑
- https://blog.0day.rocks/securing-a-web-hidden-service-89d935ba1c1d
- https://null-byte.wonderhowto.com/how-to/detect-misconfigurations-anonymous-dark-web-sites-with-onionscan-0181366/
- https://www.secjuice.com/finding-real-ips-of-origin-servers-behind-cloudflare-or-tor/
- Also useful to learn about related topic to find out how the origin IP of a server behind a CDN can be found out.
- See also onionscan.
- ↑
These applications are talking to Tor control port directed (filtered) through onion-grater, created through Tor control protocol command
ADD_ONION
. - ↑ https://en.wikipedia.org/wiki/Transport_Layer_Security
- ↑ To be exact, only tor-to-tor, see Notes about End-to-end Security of Onion Services.
- ↑ https://archive.ph/qCRb5
- ↑ https://archive.ph/Aaqsz
- ↑ https://lists.torproject.org/pipermail/tor-talk/2016-October/042360.html
- ↑ https://wiki.debian.org/WebServers
- ↑
It is advised to install libapache2-mod-removeip.
Install package(s)
libapache2-mod-removeip
. Follow steps A to E.A Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: In Template.
B Update the package lists and upgrade the system .
sudo apt update && sudo apt full-upgrade
C Install the
libapache2-mod-removeip
package(s).Using
apt
command line--no-install-recommends
option is in most cases optional.sudo apt install --no-install-recommends libapache2-mod-removeip
D Platform specific notice.
- Non-Qubes-Whonix: No special notice.
- Qubes-Whonix: Shut down Template and restart App Qubes based on it as per Qubes Template Modification .
E Done.
The procedure of installing package(s)
libapache2-mod-removeip
is complete. - ↑
(Source: old forum)
1. Stop Apache.
2. In ports.conf:
NameVirtualHost 127.0.0.1:80 Listen 127.0.0.1:80 ServerName localhost
3. In sites-available/default:
4. Start Apache and redirect the listening port.
Apache will not be listening on 10.152.152.10, but only on 127.0.0.1. Therefore it is necessary to redirect 10.152.152.10:80 to 127.0.0.1:80.
This can be achieved with a firewall rule or netcat:
sudo ncat -l 10.152.152.10 80 -c 'ncat 127.0.0.1 80'
- ↑
- ↑ https://mascherari.press/why-onionscan-should-worry-you/
- ↑ https://mascherari.press/thwarting-identity-correlation-attacks/
- ↑ At the time of writing, OnionScan has not had any commits since early 2017.
- ↑ https://github.com/camelids/
- ↑ Website Fingerprinting Defenses at the Application Layer
- ↑ https://web.archive.org/web/20170421225506/https://www.esat.kuleuven.be/cosic/?p=6743
- ↑ https://forums.whonix.org/t/ship-or-document-ddos-resistant-torrc-settings/10417
- ↑ Since it is easy to confirm that the internal LAN IP
10.152.152.10
is normally used by Whonix-Gateway. - ↑
- ↑ Since Whonix version
15.0.0.8.7
. - ↑
- ↑
Listening on
0.0.0.0
means the application will accept connections on any IP address irrespective of Whonix-Workstation actual internal network interfaceeth0
assigned IP address. Why not listen on localhost127.0.0.1
inside Whonix-Workstation?- Generally, unspecific to Whonix: One computer/VM cannot directly connect to another computer's/VM's localhost.
- Whonix specific: Tor running on Whonix-Gateway can only connect to the applications on Whonix-Workstation listening on eth0 external network interfaces but not directly to Whonix-Workstation localhost. Therefore application in Whonix-Workstation must not listen on localhost but on eth0.
0.0.0.0
:- A) It would also be possible for the server application to listen only on Whonix-Workstation internal network interface
eth0
. This however requires the application to support listening on a network interface rather than a hardcoded IP address. Many applications do not support that. - B) Listen on Whonix-Workstation internal IP address.
- C) Listen on localhost
127.0.0.1
and then use something such as Qubes qrexec to connect Tor'sVIRTPORT
to the application's listening port.
- ↑ The purpose of Onion Services Authentication has been asked about on the Tor Talk Mailing List. Answers:
- ↑ To use yourself locally for testing on the same Whonix-Gateway. On the Whonix-Gateway. Run as user. Do not run as root. cp /var/lib/tor_autogen/hidden_service/1.auth_private ~/
- ↑
Quote https://onionbalance-v3.readthedocs.io/en/latest/v3/tutorial-v3.html
Note that if you do not have an existing v3 onion service and you are trying to create one from scratch, you must first start Tor once without this torrc line, otherwise it will fail to start.
- ↑ https://support.torproject.org/onionservices/
- ↑ This is currently a 16 character name, but will be increased to 54 characters in the near-medium term to upgrade the cryptographic strength of .onion services. See: https://blog.torproject.org/cooking-onions-names-your-onions
- ↑ https://2019.www.torproject.org/images/tor-onion-services-6.png
- ↑ Concerns with v2 onion services included:
- 80 bit name hash and RSA-1024 sized keys
- Quote Mike Perry (Tor core people https://www.torproject.org/about/people/): https://www.mail-archive.com/liberationtech@lists.stanford.edu/msg05418.html
- Quote Mike Perry: https://www.mail-archive.com/liberationtech@lists.stanford.edu/msg05462.html
- Also see: The Tor Project Blog: Onion Services need some love.
- Non-Hidden Onion Services Considered Harmful: Attacks and Detection
- https://forums.whonix.org/t/cryptolog-for-whonix-website/3369/12
We believe security software like Whonix needs to remain open source and independent. Would you help sustain and grow the project? Learn more about our 12 year success story and maybe DONATE!
