Introduction[edit]

Debian logo
Tor logo

Whonix ™ routes all traffic through Tor, which is is currently the best available anonymity network.

Whonix ™ aims to preserve privacy and anonymity by helping users run applications anonymously. A web browser, IRC client, office suite, and more come pre-configured with security in mind. Internet traffic by Whonix ™ is all routed through the Tor anonymity network.

Whonix ™ is a complete operating system (OS) with additional, advanced security and anonymity features. It consists of two virtual machines -- Whonix-Gateway ™ and Whonix-Workstation ™ -- which are designed to be used on a supported host OS. (Host Operating System Selection)

The host OS supporting Whonix ™ is usually the one installed on the user's computer, but OSes installed on external drives will also work (USB Installation). Users choose the preferred Whonix ™ configuration and may use either a Type I hypervisor (Qubes-Whonix ™), or a Type II hypervisor like KVM and Virtualbox.

Whonix ™ is Freedom Software and is based on Kicksecure ™ (security-focused Linux Distribution), Tor [1], Debian GNU/Linux [2], and the principle of security by isolation.

Security by Isolation[edit]

Whonix ™ is the best way to use Tor and provides the strongest protection for your privacy online by hiding your real IP address.

Whonix ™ protects from leaks. In laymen's terms a leak occurs if a user expects to be wholly using Tor, but instead some application traffic bypasses Tor and is routed over the normal internet (clearnet). A solitary leak is all that is required to de-anonymize the user, for example via IP leaks, DNS leaks, UDP and other channels.

Even when Tor provides sufficient anonymity, it can be very complicated or impossible for users to configure applications so all traffic is routed through the Tor network. The reason is networking is very complex and most applications are not designed with anonymity or privacy in mind.

In Whonix ™, DNS and other related leaks (IP, DNS, UDP, ICMP) are impossible. Even malware with root privileges cannot discover the user's real IP address because Whonix ™'s split-VM design ensures all internet traffic is routed through Tor.

Some applications like the Tor Browser Bundle are specifically designed for anonymity and attempt to eliminate all known leak vectors. Unfortunately, despite all best efforts leaks have occurred in the past due to Tor Browser Bundle software defects (bugs). In such cases, Whonix ™ users were protected and unaffected by these leaks.

Whonix ™ is divided into two VMs:

  • Whonix-Gateway ™ to enforce routing of all Internet traffic through the Tor network, and
  • Whonix-Workstation ™ for work activities. Whonix-Workstation ™ is unaware of its real external IP address, which means the user's real external IP address is always protected and leaks are impossible.

This security by isolation configuration averts many threats posed by malware, misbehaving applications, and user error.

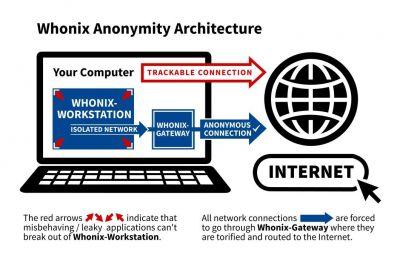

Figure: Whonix ™ Operating System Design


(more technical illustrative images)

This is not an empty claim -- Whonix ™ has been audited via the corridor (Tor traffic whitelisting gateway) and other leak tests. In over a decade, no leaks were ever discovered.

Technical readers can refer to the Whonix ™ technical introduction and security overview chapters for further details.

Online Anonymity via Tor[edit]

Tor logo

Whonix ™ relies on the Tor network to protect a user's anonymity online; all connections are forced through Tor or otherwise blocked. Tor helps to protect users by bouncing communications around a distributed network of relays run by volunteers all around the world. Without advanced, end-to-end, netflow correlation attacks, anybody watching a user's Internet connection cannot easily determine the sites visited, and those sites cannot learn the user's physical location. [3]

To learn more about Tor, read the official documentation on the Tor website :

Based on Debian[edit]

Debian logo

Info Tip: Since Ubuntu is a Debian derivative, online help for Ubuntu most often works for Whonix ™.

In oversimplified terms, Whonix ™ is just a collection of configuration files and scripts. Whonix ™ is not a stripped down version of Debian; anything possible in "vanilla" Debian GNU/Linux can be replicated in Whonix ™. Likewise, most problems and questions can be solved in the same way. For example: "How do I install VLC Media Player on Whonix ™?" -- "The same way as in Debian apt install vlc. Whonix ™ does not break anything, limit functionality, or prevent installation of compatible software.

Whonix Version[edit]

Each Whonix ™ release is based on a particular version of Debian:

Whonix ™ version Debian Version Debian Codename
Whonix ™ 16.0.5.3 11 bullseye

Users can manually check the Whonix ™ version at any time by following this step.

Release Schedule[edit]

Note that Whonix ™ does not have a fixed release schedule. A new stable release only becomes available when it is deemed ready. Interested users can query the issue tracker [4] and release notes to track developer progress. Stay Tuned.

Summary[edit]

Table: Whonix ™ Goals, Design and Limitations

Category Description
Whonix ™ is
  • a free and open operating system
  • an anti-censorship tool
  • the first step among many in hiding a user's identity
Whonix ™ helps to
  • disguise a user's IP address
  • prevent internet service provider (ISP) spying
  • prevent websites from identifying the user
  • prevent malware from identifying the user
  • circumvent censorship
Whonix ™ is not
  • a one-click anonymization solution, since anonymity is a complex behavioral and technical problem in a highly surveilled world [5]

Support Schedule[edit]

Debian Hosts[edit]

New Debian Release

One month after a new stable version of Debian is released, Whonix ™ VMs may no longer be supported on any older version of Debian. All users need to upgrade the Debian platform promptly after the deprecation notice in order to use Whonix ™ safely.

New Whonix ™ Release

One month after a new stable version of Whonix is released, older versions will no longer be supported. All users need to upgrade the Whonix ™ platform promptly in order to remain safe.

Deprecation Notices

The deprecation notice is provided at least one month in advance and posted in the Whonix ™ News forum. Stay Tuned! All users need to upgrade the respective platform promptly in order to remain safe. [6]

Debian-based and Other Hosts[edit]

As per Debian Hosts.

Windows Hosts[edit]

The support schedule is mostly undefined at present, but likely to mirror Debian Hosts.

Qubes Hosts[edit]

Quote Qubes-Whonix ™ version support policy:

Whonix ™ templates are supported by our partner, the Whonix ™ Project. The Whonix ™ Project has set its own support policy for Whonix ™ templates in Qubes.

This policy requires Whonix ™ template users to stay reasonably close to the cutting edge by upgrading to new stable releases of Qubes OS and Whonix ™ templates within a month of their respective releases. To be precise:

  • One month after a new stable version of Qubes OS is released, Whonix ™ templates will no longer be supported on any older release of Qubes OS. This means that users who wish to continue using Whonix ™ templates on Qubes must always upgrade to the latest stable Qubes OS release within one month of its release.
  • One month after new stable versions of Whonix ™ templates are released, older releases of Whonix ™ templates will no longer be supported. This means that users who wish to continue using Whonix ™ templates on Qubes must always upgrade to the latest stable Whonix ™ template releases within one month of their release.

We aim to announce both types of events one month in advance in order to remind users to upgrade.

Next Steps[edit]

Learning more about Whonix ™ is the best way to determine whether it is a suitable solution in your personal circumstances. The following chapters are recommended:

  • The Warning page to understand the security limitations of Whonix ™ and Tor.
  • Further information about Whonix ™ Features.
  • The implied Trust placed in Whonix ™ when it is used.
  • Other relevant Documentation explaining how to use Whonix ™ safely.

See Also[edit]

Footnotes[edit]

  1. https://www.torproject.org/about/overview.html.en
  2. https://en.wikipedia.org/wiki/Debian
  3. Current practical, low-latency, anonymity designs like Tor fail when the attacker can see both ends of the communication channel (traffic going into and out of the Tor network). If both flows are visible simple statistics can determine whether they match up.
  4. For example, for the next release use the tag "Whonix ™ 16" and status "Open".
  5. Readers of the Whonix ™ documentation will quickly learn that one-click anonymization solutions simply do not exist and will likely never be developed.
  6. This also relieves Whonix ™ developers from needing to diagnose and support old-stable versions of Qubes/Debian/Whonix ™, which duplicates the maintenance burden.
